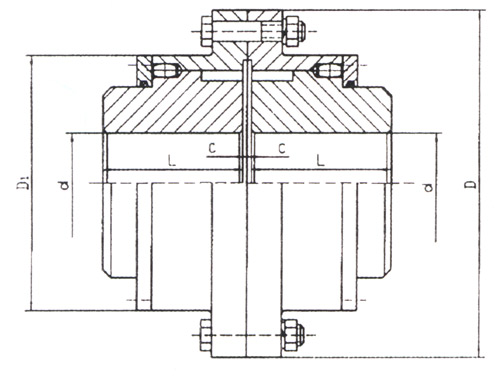

QL型滚柱联轴器的参数及主要尺寸：mm
|
型号 |
许用扭矩
Tn kN.m |
许用转速
r/min |
轴孔直径
d dz |
D |
D1 |
D2 |
D3 |
L |
间隙 |
重量
kg |
替代
型号 |
|
B |
C |
C1 |
C2 |
|
QL1 |
0.9 |
4700 |
18-40 |
170 |
110 |
55 |
110 |
55 |
96 |
25 |
11 |
18 |
9.8 |
CL1 |
|
QL2 |
1.8 |
3900 |
30-50 |
185 |
125 |
70 |
120 |
70 |
108 |
25 |
13 |
22 |
13.8 |
CL2 |
|
QL3 |
3.6 |
3400 |
40-60 |
220 |
150 |
90 |
150 |
85 |
128 |
25 |
15 |
25 |
23 |
CL3 |
|
QL4 |
6.4 |
2800 |
45-75 |
250 |
178 |
110 |
170 |
105 |
138 |
25 |
17 |
28 |
33 |
CL4 |
|
QL5 |
9 |
2500 |
50-90 |
290 |
200 |
130 |
200 |
115 |
160 |
5 |
22 |
35 |
52 |
CL5 |
|
QL6 |
13.5 |
2000 |
60-105 |
320 |
230 |
140 |
220 |
125 |
180 |
5 |
25 |
35 |
73 |
CL6 |
|
QL7 |
21.8 |
1900 |
65-120 |
350 |
255 |
170 |
250 |
140 |
192 |
5 |
25 |
40 |
100 |
CL7 |
|
QL8 |
27 |
1600 |
80-140 |
380 |
285 |
190 |
280 |
160 |
200 |
5 |
30 |
45 |
132 |
CL8 |
|
QL9 |
35 |
1400 |
90-160 |
430 |
320 |
210 |
320 |
165 |
220 |
5 |
30 |
__ |
165 |
CL9 |
|
QL10 |
60 |
1200 |
110-180 |
490 |
375 |
260 |
380 |
180 |
232 |
5 |
30 |
__ |
250 |
CL10 |
|
QL11 |
80 |
1100 |
120-220 |
545 |
410 |
300 |
440 |
200 |
248 |
5 |
35 |
__ |
320 |
CL11 |
|
QL12 |
115 |
1000 |
140-250 |
590 |
455 |
340 |
480 |
240 |
292 |
5 |
38 |
__ |
470 |
CL12 |
|
QL13 |
168 |
900 |
160-280 |
680 |
505 |
380 |
550 |
260 |
328 |
7.5 |
45 |
__ |
650 |
CL13 |
|
QL14 |
229 |
800 |
180-320 |
730 |
580 |
420 |
600 |
280 |
326 |
7.5 |
50 |
__ |
857 |
CL14 |
|
QL15 |
280 |
750 |
200-360 |
780 |
660 |
480 |
650 |
320 |
362 |
7.5 |
50 |
__ |
1090 |
CL15 |
|
QL16 |
430 |
650 |
230-400 |
900 |
740 |
530 |
750 |
350 |
386 |
10 |
__ |
__ |
1627 |
CL16 |
|
QL17 |
615 |
600 |
260-450 |
1000 |
850 |
630 |
850 |
400 |
420 |
10 |
__ |
__ |
2120 |
CL17 |
|
QL18 |
860 |
550 |
300-500 |
1100 |
960 |
710 |
950 |
450 |
460 |
10 |
__ |
__ |
3118 |
CL18 |
|
QL19 |
1160 |
500 |
350-560 |
1250 |
1030 |
800 |
1050 |
485 |
540 |
15 |
__ |
__ |
4370 |
CL19 | |
